Install a Collector

A Collector is the software that does the looking. Install it against a Target.

Before You Install

Vijil provides the Collector artifacts. Arrange them before you book an install window. Package names, services, and paths on this page use the name vijil-shadow.

Kind	Artifact you receive
Endpoint	A platform package: a `.pkg` for macOS, a `.deb` or `.rpm` for Linux, a ZIP archive for Windows
Network scanner	A container image, and access to the registry that holds it
In-cluster	A Helm chart and the same container image
Cloud API	The same Helm chart
Browser extension	A Chrome or Edge extension, and the policy to push it

Network Requirements

Collectors need outbound DNS and HTTPS to the control plane on port 443. They only make outbound connections, so you can leave your inbound firewall rules closed. Tell your security operations team before the first network-scanner sweep. A scanner sweeping a /16 reaches 65,536 addresses and will register on intrusion detection as a port scan.

Values Every Collector Needs

Every Collector needs two values. Where to report. The control plane address. On Vijil’s hosted service it is https://discover.vijil.ai. On a self-hosted Console, read it with:

vijil discover setup-info

Which Target. The id returned when you created the Target. See Create and Manage Targets.

Choose a Credential

Credential	Use when	Mint it with
Scanner token	You install by hand: a virtual machine, a Helm release, a cloud connector. One token per Collector, revocable on its own.	`vijil discover scanner-mint <target-id> --scanner-kind <kind>`
Enrollment code	The install is unattended and repeated: a laptop fleet through device management. One code serves the whole wave, and each machine registers as its own Collector.	`vijil discover enrollment-code-create <target-id>`

Both are also available in the Console, on the Scanners sub-tab of the Target.

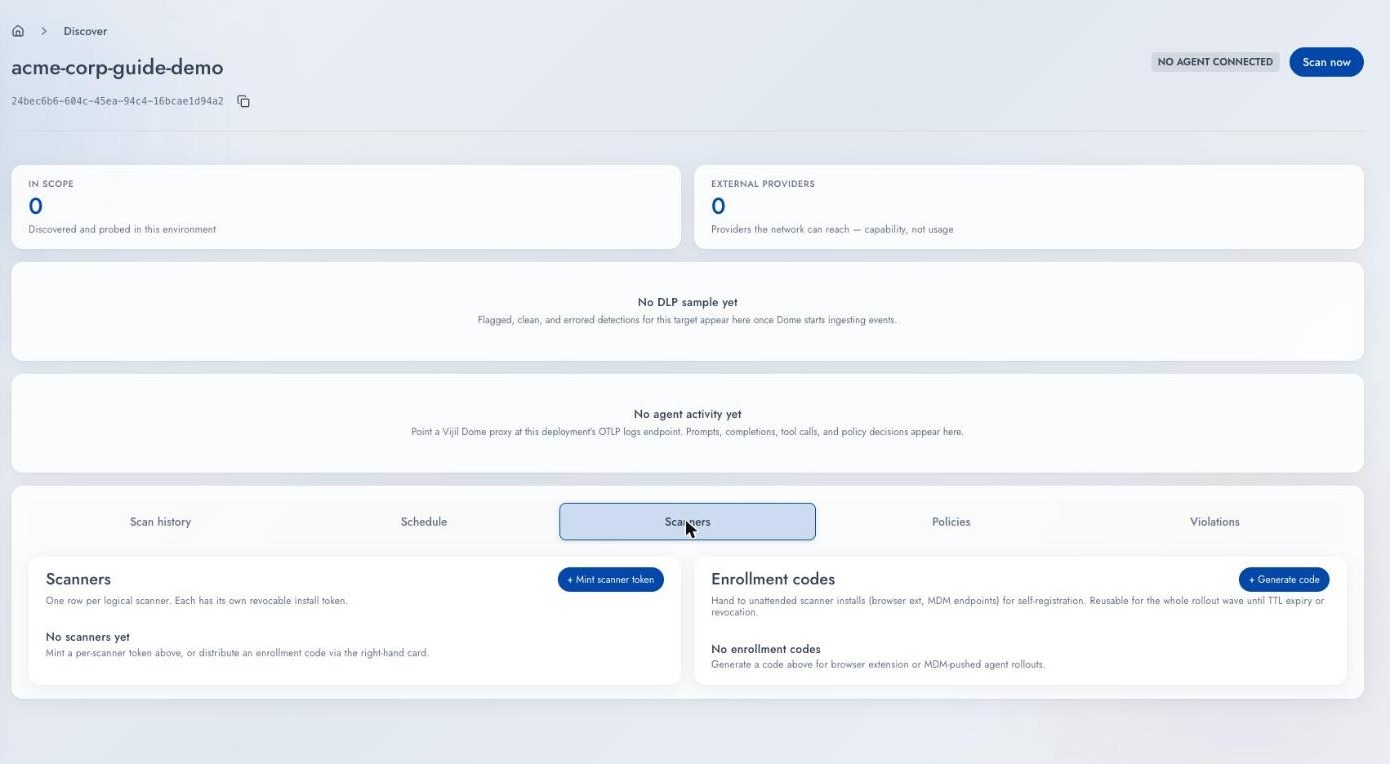

The Scanners sub-tab of a Target before any Collector has enrolled

Use + Mint scanner token for a scanner token, or + Generate code for an enrollment code. An enrollment code takes two settings:

Field	What to enter
Allowed scanner kinds	The kinds this code may enroll, comma separated. Enter `*` to allow any.
TTL (hours)	How long the code stays usable, up to a maximum of 720 hours.

For an endpoint rollout, allow only the platform you are deploying to: endpoint_macos, endpoint_linux, or endpoint_windows. A code allowing * for 720 hours enrolls anything for 30 days. Scope both settings to the rollout you are running.

The enrollment code form showing allowed scanner kinds and a time to live in hours

The Console shows the code in full once, immediately after you generate it. Copy it then. Afterwards only the identifier and the expiry remain visible.

Endpoint Collectors

The endpoint Collector runs as a service on the machine you want inventoried. It runs on macOS, Linux, and Windows. Use an enrollment code for a fleet, and push the package through your device management or configuration management tool. Every install needs administrator or root privileges.

macOS

Write the enrollment code to /etc/vijil-shadow/enrollment-code before running the installer:

sudo install -d -m 700 /etc/vijil-shadow
printf '%s' '<enrollment-code>' | sudo tee /etc/vijil-shadow/enrollment-code >/dev/null
sudo chmod 600 /etc/vijil-shadow/enrollment-code

The macOS installer does not read environment variables, so the file is the only way to pass the code. Then run the installer Vijil supplied. It starts the Collector as a service. Logs land under /var/log/vijil-shadow/. Read endpoint.log first, then endpoint.err.log if the first is empty.

Linux

Vijil supplies a .deb package for Debian and Ubuntu, and a .rpm package for Fedora and RHEL. Vijil tests both on Ubuntu 22.04 and 24.04, and on RHEL 8 and 9. Pass the control plane address and the enrollment code on the install command:

sudo VIJIL_SHADOW_CONTROL_PLANE_URL='<control-plane-url>' \
     VIJIL_SHADOW_ENROLLMENT_CODE='<enrollment-code>' \
     dpkg -i vijil-shadow-endpoint-<version>.x86_64.deb

sudo VIJIL_SHADOW_CONTROL_PLANE_URL='<control-plane-url>' \
     VIJIL_SHADOW_ENROLLMENT_CODE='<enrollment-code>' \
     rpm -i vijil-shadow-endpoint-<version>-1.x86_64.rpm

Keep both variables on the sudo line, as shown. sudo -E does not pass them through on every distribution, and the install then warns VIJIL_SHADOW_CONTROL_PLANE_URL not set. The package starts the vijil-shadow-endpoint service. Confirm it runs:

sudo systemctl status vijil-shadow-endpoint
sudo journalctl -u vijil-shadow-endpoint -f

Logs also land in /var/log/vijil-shadow/endpoint.log.

Windows

Vijil supplies a ZIP archive with the Collector and two PowerShell scripts, install-service.ps1 and uninstall-service.ps1. Run the install from an elevated PowerShell session:

Set-ExecutionPolicy -Scope Process -ExecutionPolicy Bypass

Expand-Archive vijil-shadow-endpoint-<version>.x86_64.zip -DestinationPath C:\vijil
cd C:\vijil

.\install-service.ps1 `
    -ControlPlaneUrl '<control-plane-url>' `
    -EnrollmentCode '<enrollment-code>'

The script installs and starts the VijilShadowEndpoint service, then waits for the Collector to enroll. If enrollment fails, it exits with an error and prints the log lines that explain why.

Get-Service can report Running for a Collector that never enrolled. Confirm that C:\ProgramData\vijil-shadow\identity.json exists instead.

If the file is missing, read the service log:

Get-Content 'C:\ProgramData\vijil-shadow\service-stderr.log' -Tail 20 -Wait

The Windows Collector does not cover WSL2. Install the Linux endpoint Collector inside WSL2 as well. To remove the Collector, revoke it first, then run .\uninstall-service.ps1.

Self-Signed Control Plane Certificates

If your control plane uses a self-signed certificate, trust it on the machine before you install. Otherwise the Collector logs CERTIFICATE_VERIFY_FAILED and cannot enroll.

sudo cp <control-plane-cert>.crt /etc/pki/ca-trust/source/anchors/
sudo update-ca-trust

sudo cp <control-plane-cert>.crt /usr/local/share/ca-certificates/
sudo update-ca-certificates

Import-Certificate -FilePath <control-plane-cert>.crt `
    -CertStoreLocation Cert:\LocalMachine\Root

Upgrades and Re-Enrollment

An upgrade needs no new enrollment code. On Linux, remove the old package and install the new one. On Windows, run install-service.ps1 from the new archive with only -ControlPlaneUrl. If you revoke a Collector or recreate its Target, give the machine a fresh enrollment code. Write it to /etc/vijil-shadow/enrollment-code on macOS or Linux, or to C:\ProgramData\vijil-shadow\config\enrollment-code on Windows. The Collector re-enrolls within five minutes and appears as a new Collector, so revoke the old one.

Network Scanner Collectors

The network scanner runs as a container on a virtual machine inside the network. It finds services by reaching out to hosts it can route to. What you supply

A virtual machine inside the target network, with routes to the subnets you want swept
Docker installed on it
A language model API key for classification, unless you accept an Uncertain group. See Classification.

Mint a scanner token, then write the Collector’s environment to a file. Every user who can run ps on the host sees anything you pass with -e.

sudo install -m 600 /dev/null /etc/vijil-shadow/secrets.env
sudo tee /etc/vijil-shadow/secrets.env >/dev/null <<'EOF'
LLM_API_KEY=<language-model-api-key>
ANTHROPIC_API_KEY=<language-model-api-key>
SCAN_CIDRS=10.0.0.0/16
CONTROL_PLANE_URL=<control-plane-url>
CONTROL_PLANE_DEPLOYMENT_ID=<target-id>
CONTROL_PLANE_TOKEN=<scanner-token>
EOF

Then run the Collector as a resident daemon:

sudo docker run -d --restart unless-stopped \
    --network=host \
    --cap-add=NET_RAW \
    --name vijil-shadow \
    --env-file /etc/vijil-shadow/secrets.env \
    -v /var/lib/vijil-shadow:/out \
    <image> \
    daemon

Use the daemon subcommand. The scan subcommand runs once and then exits. Scan now queues work for a Collector to pick up, so it only works while a Collector stays running.

--network=host and --cap-add=NET_RAW are both required. Without them, the sweep exits with a permission error.

In-Cluster Collectors

The in-cluster Collector reads your cluster’s services through the Kubernetes API, so you can skip provisioning a virtual machine. What you supply

A Kubernetes cluster, 1.27 or later, with kubectl configured against it
Helm 3.8 or later
A language model API key for classification

Mint a scanner token, then install the chart:

helm install vijil-shadow ./vijil-shadow \
    --set scan.mode=k8s \
    --set daemonMode.enabled=true \
    --set daemonMode.persistence.enabled=true \
    --set llmApiKey="$LLM_API_KEY" \
    --set controlPlane.enabled=true \
    --set controlPlane.url="$CONTROL_PLANE_URL" \
    --set controlPlane.deploymentId="$TARGET_ID" \
    --set controlPlane.token="$SCANNER_TOKEN"

To keep the key out of the release values, pre-create a Secret and reference it with --set existingSecret.name=<secret-name> instead of --set llmApiKey. The chart reads the key LLM_API_KEY from that Secret unless you override existingSecret.key.

Cloud API Collectors

The cloud API Collector lists managed AI in your AWS account: Bedrock models and agents, SageMaker endpoints, AgentCore runtimes and gateways, and the Guardrails attached to them. What you supply

An Amazon EKS cluster with an OIDC provider configured
kubectl and Helm 3.8 or later against that cluster
An IAM role holding read-only list permissions for the services you want listed, with a trust policy admitting your cluster’s OIDC issuer

This Collector needs no language model API key. Mint a scanner token, then install the chart with the role attached to its service account:

helm install vijil-shadow-aws ./vijil-shadow \
    --set connector.enabled=true \
    --set connector.mode=cloud-api/aws \
    --set connector.useLlm=false \
    --set connector.aws.region=us-east-1 \
    --set serviceAccount.create=true \
    --set 'serviceAccount.annotations.eks\.amazonaws\.com/role-arn=<role-arn>' \
    --set controlPlane.enabled=true \
    --set controlPlane.url="$CONTROL_PLANE_URL" \
    --set controlPlane.deploymentId="$TARGET_ID" \
    --set controlPlane.token="$SCANNER_TOKEN"

It runs on a schedule.

Browser Extension Collectors

The browser extension reports the AI assistants people use in the browser, per tab. Use an enrollment code and push the extension through browser policy, the same way you would any other managed extension.

One-Shot Collectors

These Collectors run once against a specific source and exit. They take the same credentials and report into the same Target.

Collector	Reports
EASM	Internet-facing surface for a domain you own
Egress	AI destinations reached from your network, read from egress records
Logs	AI usage found in logs you already collect
Identity provider	AI applications authorized through your identity provider
Gateway	AI traffic seen by an API gateway

A scanner reports what exists. These Collectors report what people actually use.

Verify a Collector Connected

Open the Target in the Console. The Collector appears on the Scanners sub-tab once it checks in, and the header badge shows one of four states:

Badge	Meaning
Agent online	Reporting normally
Agent stale	Missed its last check-in
No agent reporting	Has reported before, but not recently
No agent connected	Has never reported

Agent stale and No agent reporting appear only on this badge. Check it when a Collector stops working. From the command line:

vijil discover scanner-list <target-id>

A new Collector appears within a minute of starting. A Collector that stays silent for 30 days drops out of the current view, and its findings with it.

Troubleshooting

The Collector never appears on the Scanners sub-tab. Work down this list:

Confirm the service is running, and read its log. On macOS and Linux, read endpoint.log under /var/log/vijil-shadow/ first, then endpoint.err.log if the first is empty. On Windows, read C:\ProgramData\vijil-shadow\service-stderr.log.
On a macOS or Linux endpoint Collector, confirm /etc/vijil-shadow/enrollment-code exists and holds the code. On Windows, confirm C:\ProgramData\vijil-shadow\identity.json exists.
Confirm the host can reach the control plane outbound on port 443.
Confirm the control plane address matches the one vijil discover setup-info returns.
Confirm the credential is still valid and belongs to this Target.

Uploads fail with HTTP 401. You minted the token for a different Target than the one the Collector uses. Re-mint against the Target you meant. Scan now appears to do nothing. Either the Collector ran once and exited, so reinstall it with the daemon subcommand, or no Collector has checked in for 24 hours. In the second case the Console says “No agent has checked in during the last 24 hours, so nothing was queued.”

Revoke Credentials

Revoking takes effect immediately. Revoking a scanner also removes its findings from the current view at once, without waiting for the 30-day silence window. Its past reports stay in scan history.

vijil discover scanner-revoke <scanner-id>
vijil discover enrollment-code-revoke <code-id>

You cannot revoke the Collector that uses the Target’s own install token. Rotate the install token instead. Revoke enrollment codes once you finish the rollout. Every machine that holds a live code can still enroll with it.
